AMT series

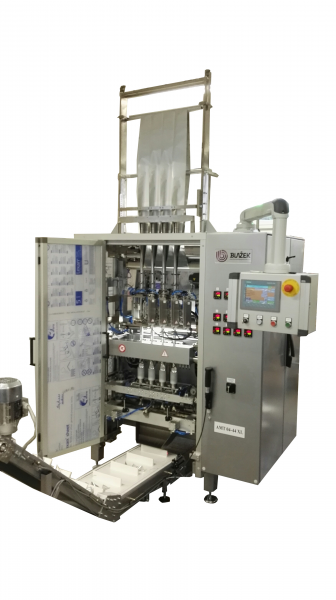

AMT series are high performance, reliable, fully automated, multilane vertical packaging machines for single portion packing of variable loose (powder, granulate), piece and liquid goods (cosmetics as masks, shampoos, creams, liquid soaps, hair colours) into pyramidal bags, stickpacks and flat bags sealed on three sides. According to the packed product the packaging machine is equipped with suitable dosing equipment. The control system ensures the user can easily and quickly manage all the packaging machine settings. Bags are made from an endless roll of heat sealable packing material. The foil is cut into individual narrow strips according to the number of tubes (except one-lane packaging machine), passes through a forming part (without forming collar); all strips are sealed lengthwise and make sleeves. This sleeve is sealed by a cross jaw and a precise dose of packed goods is filled through the tube. The attractive shape of pyramidal bags is made by two pairs of cross jaws that seal the bags by turning for 90° and making bags of triangle shape. The sleeve is pulled down for set length and pair of cross jaws seals it transversely. Integrated blade cuts the bags off onto an exit conveyor that transports the bags for further handling. The bag shape can be changed automatically on the panel. All parts that come into contact with goods of food character are made of stainless steel AISI 304 (upon a special request also in AISI 316L). The packaging machine ABM EN is possible to combine with other optional accessories.
| Maximal foil width: | 1000 mm |
|---|---|
| Bag measurements: | width 28,5-70 mm, lenght 50-250 mm |
| Number of tubes: | 1-9 |
| Maximal output: | 60 cycles/min. (depending on packed product), up to 540 bags/min. |
| Bag type: | pyramidal, pyramidal boiling, stickpack, flat, flat boiling, flat with euro hole – 3 sides sealed |
| Control systems: | SIEMENS, ALLEN BRADLEY |
| Drive: | mechanical, electrical, pneumatical |
| Weight: | 1050 kg (X), 1250 kg (XL), 1500 kg (XXL) |
| Cross seal: | linear grooving, diamond design |
| Type of packed goods: | loose (powder, granules), liquid, small pieces |
| 3D: | AMT.jpg |
| Product sheet: | AMT_FINAL.pdf |
| Recommended foil type: | customers´ choice |
ADVANTAGES
- efficient, reliable, variable, flexible, fully automated, multi-tube vertical packaging machine
- varnished or stainless steel sturdy frame
- electro-pneumatic drive
- Siemens/Allen Bradley/Telemecanique control systems provide fast and easy operation
- possibility to store parameters for different products or packaging features
- bag length settings mechanically in mm
- easy conversion to other formats (more tubes, different bag width)
- AISI 304 stainless steel finish (or AISI 316L upon customer´s request) meeting hygiene food contact requirements
- safety focus – in-built door safety feature, central emergency stop button, main switch
- sealing – heat (standard), impulse, ultrasound
- cross seal raster types - linear grooving, diamond design
- end of foil sensor, easy and quick fastening of new foil reel, automatic foil centering by sensors
- suitable for large-batch and small-batch productions, very simple control, operation and amendments
- suitable for packing cosmetics
- attractive, modern and compact design
- minimal maintenance requirements
