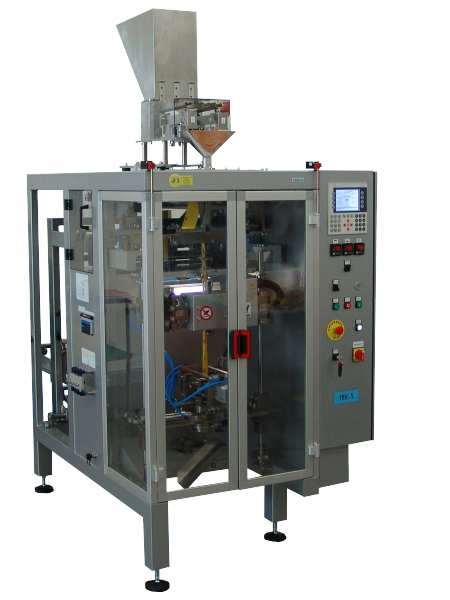

PBM-X series

PBM-X series is highly efficient automatic vertical packaging  machines suitable for single portion packing of loose (powder, granules), liquid and small piece products into stickpacks, flat or pyramidal bags and according to the packed product type are equipped with a suitable dosing device. When the bag is pulled for the set length is the bag closed by couple of cross jaws pairs rotated by 90 ° and separated by a built-in blade. Bags fall onto an exit conveyor and are transported for further handling. To change the bag type can be easily set from the control panel automatically. All parts that may come into contact with packed product of food nature are manufactured from food safe stainless steel AISI 304. The advantage of this packaging machine is easy conversion of the bag format (bag width), which is especially suitable for marketing purposes and small volume orders. Packaging machine can be combined with other optional accessories.

Maximal foil width: 300 mm
Bag measurements: width 16,5-170 mm, adjustable length 50-250 mm
Number of tubes: 1
Maximal output: 60 cycles/min. (depending on packed product), 60 bags/min.
Bag type: pyramidal, pyramidal boiling, stickpack, flat, flat boiling, flat with euro hole – 3 sides sealed
Control systems: SIEMENS
Drive: electro-pneumatical
Weight: 1050 kg w/o dosing equipment
Cross seal: linear grooving, diamond design
Type of packed goods: loose (powder, granule), small pieces
Technical drawing: PBM-X-technical drawing.jpg
Note: measurements may vary
Product sheet: PBM_X_FINAL.pdf
Recommended foil type: customers´ choice

  • highly efficient, reliable, flexible, fully automated, single-tube vertical packaging machine
  • varnished or stainless steel sturdy frame
  • electro-pneumatic drive
  • Siemens/Allen Bradley/Telemecanique control systems provide fast and easy operation
  • possibility to store parameters for different products or packaging features
  • bag length settings mechanically in mm
  • due to easy conversion to other formats (different bag width) is this packaging machine also ideal for marketing samples and small volume productions
  • AISI 304 stainless steel finish
  • meeting hygiene food contact requirements
  • safety focus – in-built door safety feature, central emergency stop button, main switch
  • sealing – heat (standard), impulse, ultrasound
  • cross seal raster types - linear grooving, diamond design
  • end of foil sensor, easy and quick fastening of new foil reel, automatic foil centering by sensors
  • simple control and operation
  • attractive and compact design
  • minimal maintenance requirements
